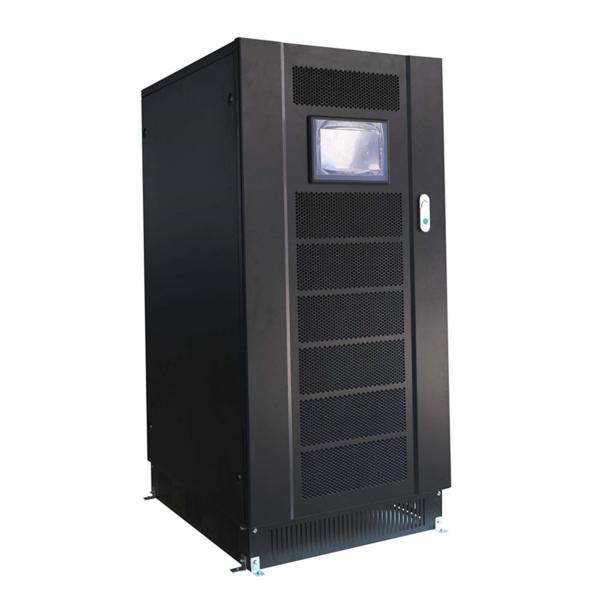

380v/400v/415v Low Frequency Online UPS 10 Kva 3 Phase Pure Sine Wave

Place of Origin : Guangdong, China

Brand Name : ZGD

Model Number : ZGD3310

Supply Ability : 10000 Piece/Pieces per Month

Price : $499.00/Sets 1-9 Sets

Certification : CE

MOQ : 1 sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7~15 working days

Packaging Details : Carton packaging

Phase : Three Phase

Weight : 118kg

Type : On-line

Product name : Online UPS Systems

Capacity : 10KVA

Certificate : CE,ULRohs,GS,TUV,FC

Input voltage : 380v/400v/415v

Display : LCD

Output : 380v/400v/415v

Products : LCD Online Low Frequency UPS Uninterrupted Power

Contact Now

3 Phase Online Low Frequency 10kva 380v/400v/415v Pure Sine Wave Ups Power Supply

• Digital control to achieve online double conversion
• Built-in output isolation transformer
• Industrial grade design
• Suitable for all kinds of harsh conditions
• Front maintenance design
• Adapt to various load conditions
• Support up to four parallel machines
• Output power factor up to 0.8
• Rich network communication interface
• Support input error phase and N-line free rectification

Specification

Model

ZGD33 10K

CAPACITY

8 KW

INPUT

Nominal Voltage

3 x 380VAC/400VAC (3Ph + N)

Acceptable Voltage Range

305VAC ~ 460VAC

Frequency

50/60 Hz ± 10 %

INVERTER

Nominal Voltage

3 x 380VAC/400VAC (3Ph + N)

Precision

Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%)

Frequency

50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz

Max. Synchronisation Speed

±1 Hz/s

Waveform

Pure Sinewave

Total Harmonic Distortion (THDv)

< 2% (Linear Load) ; < 5% (Non-linear Load)

Phase Displacement

120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load)

Dynamic Recovery Time

3 cycles at 98 % of the static value

Admissible Overload

110% for 10min; 150% for 60sec ; >160% for 200ms

Admissible Crest Factor

3:1

Admissible Power Factor

0.6~1 (inductive or capacitive)

Current Limit

High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit

STATIC BYPASS

Type

Solid state

Voltage

3 x 380VAC/400VAC (3Ph + N)

Frequency

50/60 Hz

Activation Criterion

Microprocessor control

Transfer Time

Zero

Admissible Overload

150% for 1 hour; 180% for 30sec; >200% for 200ms

Transfer to Bypass

Immediate, for overloads above 160%

Retransfer

Automatic after alarm clear

MAINTENANCE BYPASS

Type

Without interruption

Voltage

3 x 400V (3Ph + N)

Frequency

50/60 Hz

BATTERY & CHARGER

Battery Type and Numbers

12VDC x 32 pcs (29~32 pcs adjustable)

Nominal Battery Voltage

384 VDC (Based on 32pcs batteries)

Charging Method

CC/CV

Charging Current

Default 10A, Max. = Capacity / Battery Voltage

Charging Voltage

432 VDC (Based on 32pcs batteries)

PHYSICAL

Dimension
D x W x H (mm)

656 x 405 x 817

Net Weight (kgs)

118

380v/400v/415v Low Frequency Online UPS 10 Kva 3 Phase Pure Sine Wave

Certifications

380v/400v/415v Low Frequency Online UPS 10 Kva 3 Phase Pure Sine Wave

Packing & Delivery

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

4. why should you buy from us not from other suppliers?
As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
